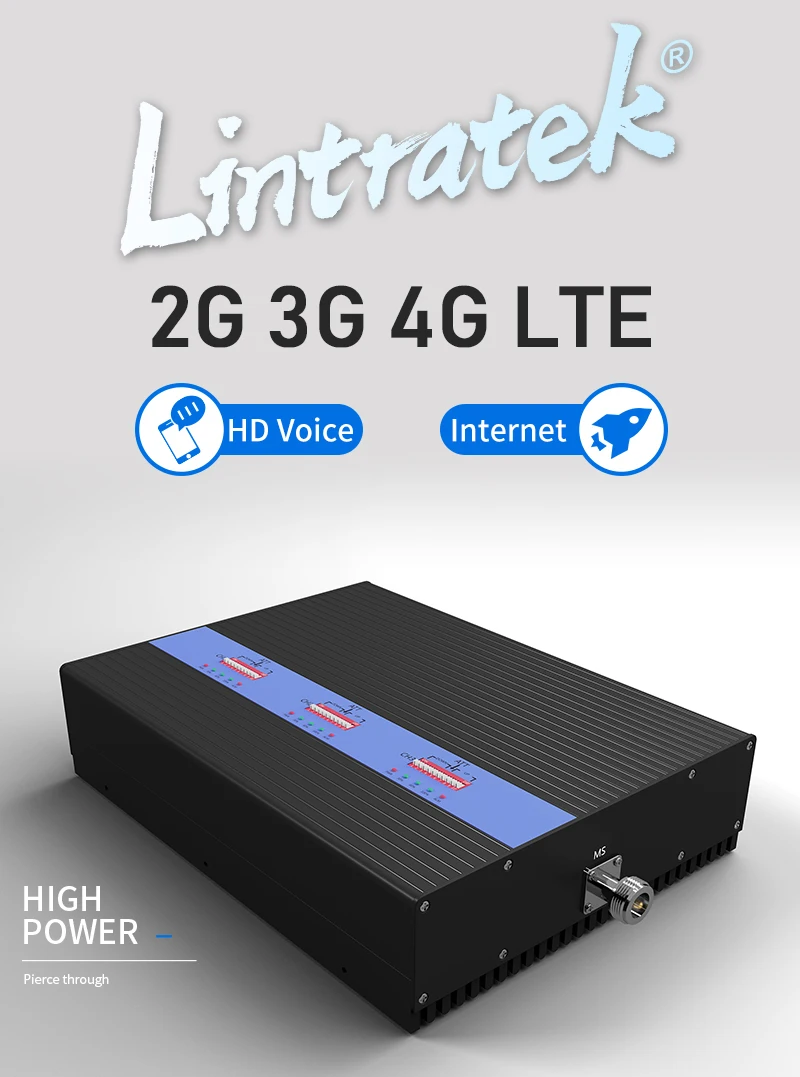

E-GSM 900 1800 2100MHz 2G 3G 4G Mobile Network Cell Phone Signal Booster
- Model NumberKW23F-EDW
- Brand NameLintratek
- Type4G Signal Booster
- Gain70dB
- Output Power23dBm
- E-GSM Frequency880-915 MHz / 925-960 MHz
- DCS Frequency1710-1785 MHz / 1805-1880 MHz
- WCDMA Frequency1920-1980 MHz / 2110-2710 MHz
- Coverage300~2000sqm
- ConnectorN Female
- Product Size270*170*60(mm)
- Net Weight3.5KG
- CertificateCE, ROHS, ISO
- Quality Warranty12 Months





Specification:
Model No | KW23F-EDW | |
Parameter data | Uplink | Downlink |
Frequency Range |
GSM:880-915MHz
DCS:1710-1785MHz
WCDMA:1920-1980MHz
|
GSM:925-960MHz
DCS:1805-1880MHz
WCDMA:2110-2710MHz
|
Output Power | 25±2dBm | 25 ±2dBm |
Gain | 70±2dB | 75±2dB |
Bandwidth | 45M | |

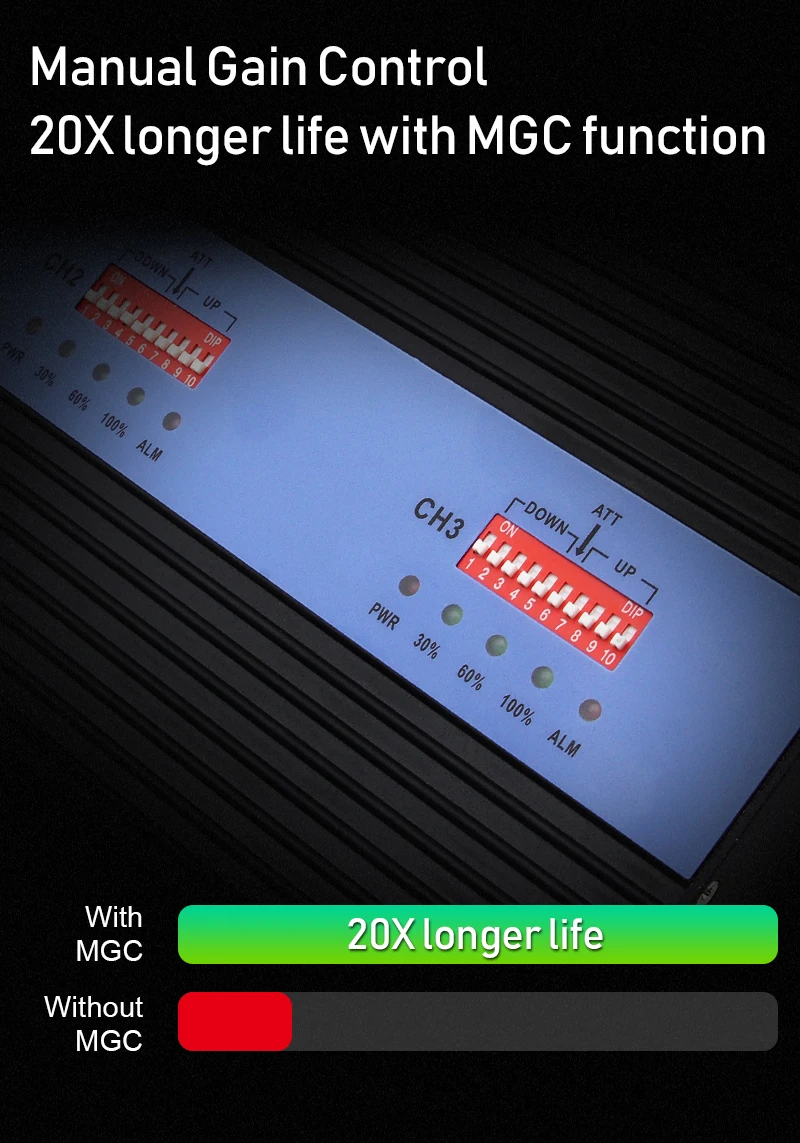

Automatic Gain Control | ≥ 20 dB | |
Ripple in Band | ≤5dB | |
Intermodulation Products | 9KHz~1GHz: ≤ -36 dBm | |
1GHz~12.75GHz: ≤ -30 dBm | ||
Spurious Emission | 9KHz~1GHz: ≤ -36 dBm | |
1GHz~12.75GHz: ≤ -30 dBm | ||
Noise Figure @ max. gain | ≤ 7 dB | |
VSWR | ≤2 | |
MTBF | >50000 hours | |
Power Supply | AC:110~240V, 50/ 60Hz; DC: 5V 3A | |
Power Consumption | < 20W | |
Impedance | 50 ohm | |
Mechanical Specification | ||
RF Connector | N-Female | |

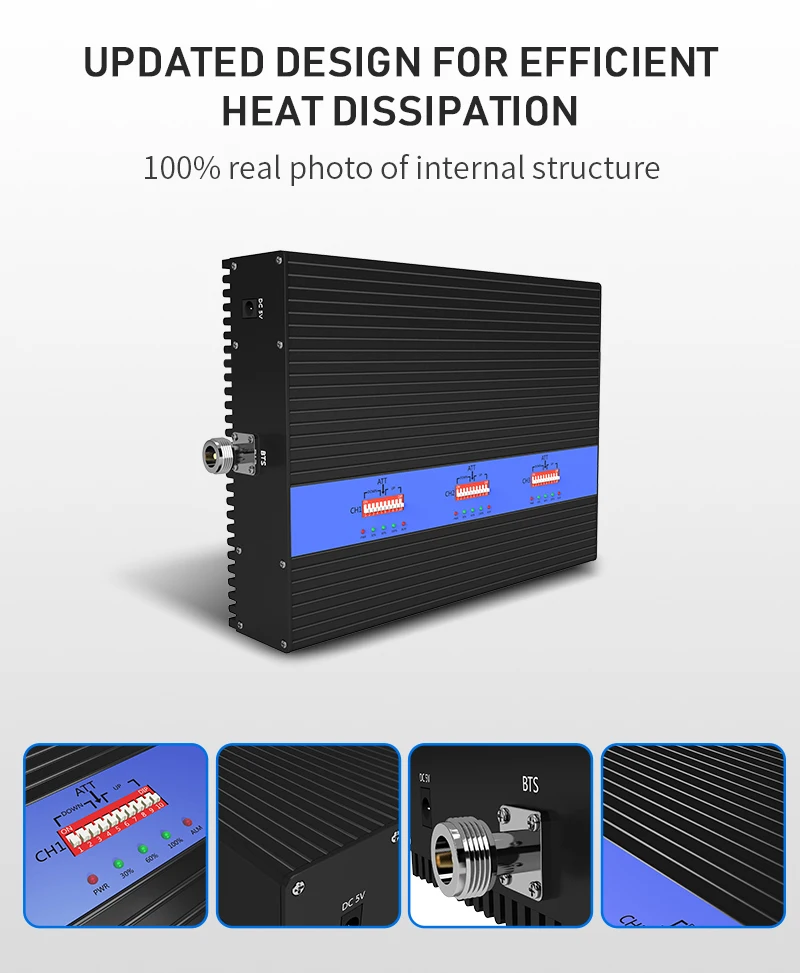

Cooling | Heatsink Convection cooling | |
Weight | 1.2Kg | |
Installation Type | Wall Installation | |
Environment Conditions | IP40 | |
Humidity | < 90% | |
Operating Temperature |
-10°C ~ 55°C |
How To Install:
Trading process:
After- Sales Service
We have 24 months quality guarantee for all customers, you can return goods to us when
receive defective repeater, but air freight charges should be responsible by buyer.
Q1:Do you have CE or any other certification?
A:Yes,we CE,ISO,ROHS and FCC certification,etc.
Q2:Can you give me a discount?
A:We will offer discount when we hold activities.
Q3:How about gain and output power of your device?
A:Different models, gain and output power are different,for more details, please contact us.
Q4:How long is warranty period?
A:The warranty is 12 months. And we offer 7*24 technical support
Q5:What's your device lifespan?
A:Normally our device can be used 10-15 years.
Q6:how many square meters can be covered?
A:For different models, the covered square meters are different.
Q7:Can I use your device in suburbs or remote areas?
Yes, as long as you can find a good signal source, our signal booster can help you solve signal problems in remote areas.
Q8:How about gain and output power of your device?
Different models, gain and output power are different,for more details, please contact us.
