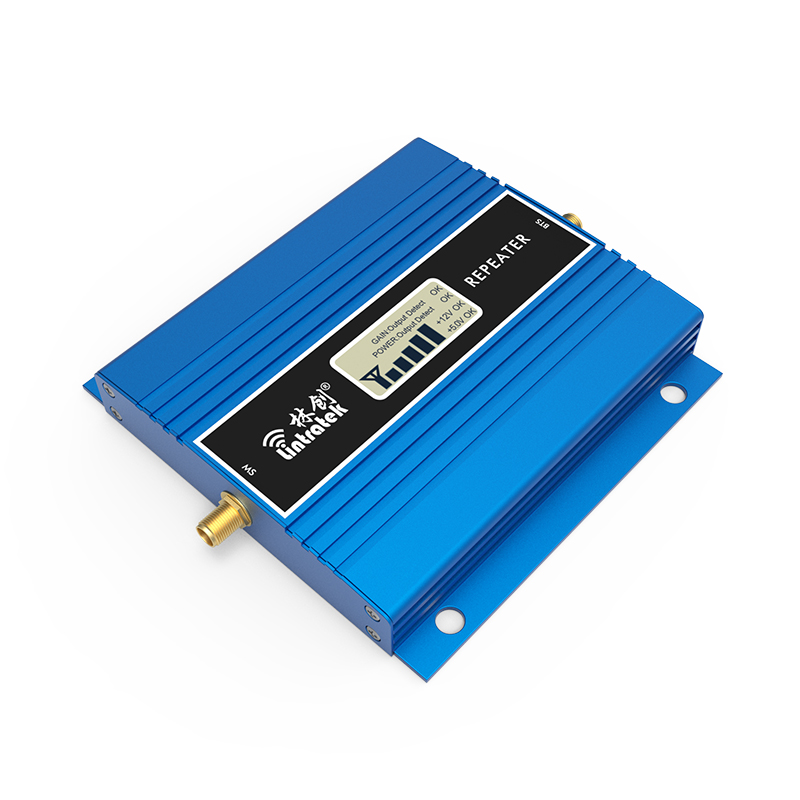

DCS 1800mh Band 3 Cellular Network Signal Booster
- Model NumberKW13A-DCS
- Brand NameLintratek
- Type3G Signal Booster
- Gain65dB
- Output Power13±2dBm
- FrequencyUpL880-915MHz DL925-960MHz
- CoverageAbout 50-100 sqm
- ConnectorN Female
- Product Size190*180*20(mm)
- Net Weight<0.22kg
- CertificateCE, ROHS, ISO
- Quality Warranty12 Months











Specification
|
||
Parameter data
|
Uplink
|
Downlink
|
Frequency Range
|
1710-1785 Mhz
|
1805-1880 Mhz
|
Output Power
|
10±2dBm
|
13 ±2Bm |
Gain
|
60±2dB | 65±2dB |
Band
width
|
Wide Band
|
|
Ripple in Band
|
≤ 5dB
|
|
Spurious Emission
|
9KHz~1GHz
|
≤-36dBm
|
1GHz~12.75GHz
|
≤-30dBm
|
|
Noise Figure @ max. gain
|
≤ 7 dB
|
|
VSWR
|
≤ 3
|
|
MTBF
|
> 50000 hours
|
|
Power Supply
|
AC:100~240V, 50/ 60Hz
DC:5V 1A
|
|
Power Comsumption
|
< 3W
|
|
Impedance
|
50 ohm
|
|
Mechanical Specification
|
||
RF Connector
|
N-Female N
|
|
Cooling
|
Heatsink Convection cooling
|
|
Weight
|
3.5Kg
|
|
Operating Temperature
|
-10°C ~ 55°C
|
Q1:Do you have CE or any other certification?
A:Yes,we CE,ISO,ROHS and FCC certification,etc.
Q2:Can you give me a discount?
A:We will offer discount when we hold activities.
Q3:How about gain and output power of your device?
A:Different models, gain and output power are different,for more details, please contact us.
Q4:How long is warranty period?
A:The warranty is 12 months. And we offer 7*24 technical support
Q5:What's your device lifespan?
A:Normally our device can be used 10-15 years.
Q6:how many square meters can be covered?
A:For different models, the covered square meters are different.
Q7:Can I use your device in suburbs or remote areas?
Yes, as long as you can find a good signal source, our signal booster can help you solve signal problems in remote areas.
Q8:How about gain and output power of your device?
Different models, gain and output power are different,for more details, please contact us.
