1/7

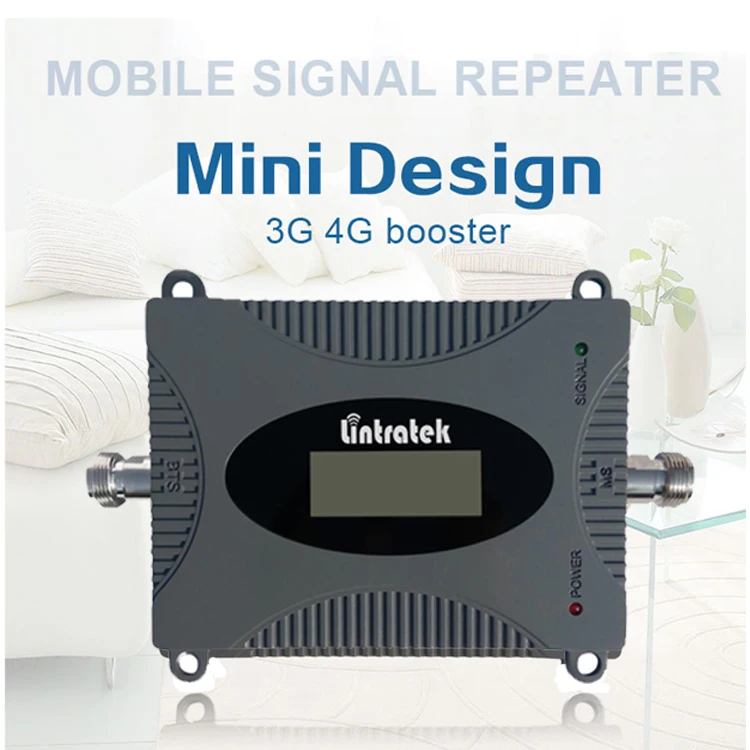

LTE B13 700mhz 65db Gain Mobile Signal Booster

1~49/unit
$45.00
≥50/unit
$35.00
Quick Details
Product Code：
KW16L-LTE-B13
OEM：
Available
Sample:
Available
Port:
GuangDong
Payment:
L/C,Western Union,T/T,PayPal
Place of Origin：
China
Shipping：
Support Express · Sea freight
Supply Ability：
5000 unit per month
Quick Details
  • Model Number
    KW16L-LTE-B13
  • Brand Name
    Lintratek
  • Type
    4G Signal Booster
  • Gain
    65dB
  • Output Power
    16dBm
  • UpLink
    777~787 MHz
  • DownLink
    746~756MHz
  • Coverage
    400-800sqm
  • Connector
    N Female
  • Product Size
    190*180*20(mm)
  • Net Weight
    0.52KG
  • Certificate
    CE, ROHS, ISO
  • Quality Warranty
    12 Months
OK
Shipping fee
Shipping fee
Inquiry Basket
Contact Supplier


Products Description

Product Parameter
 Specification
Parameter data
Uplink
Downlink
Frequency Range
777~787MHz
746~756MHz
Output Power
13 ±2dBm
16 ±2dBm
Gain
60 ±2dB
65 ±2dB
Band
width
Wide Band
Ripple in Band
≤ 5dB
Spurious

  Emission
9KHz~1GHz
≤-36dBm
1GHz~12.75GHz
≤-30dBm
Noise Figure @ max. gain
 ≤ 5dB
VSWR
≤ 3
MTBF
> 50000 hours
Power Supply
    AC:100~240V, 50/ 60Hz
                DC:5V 1A
Power Comsumption
< 3W
Impedance
50 ohm

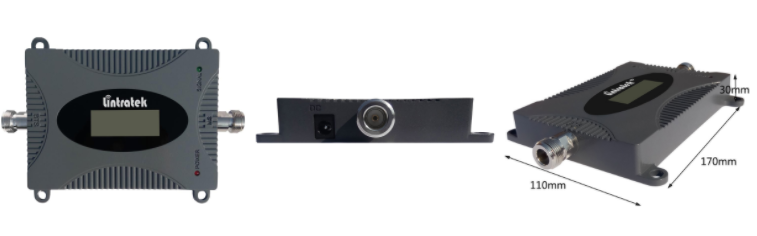

Mechanical Specification
RF Connector
 N-Female N
Cooling
Heatsink Convection cooling
Weight
< 1Kg
Operating Temperature
-10°C ~ 55°C

We Are Professional Manufacturer

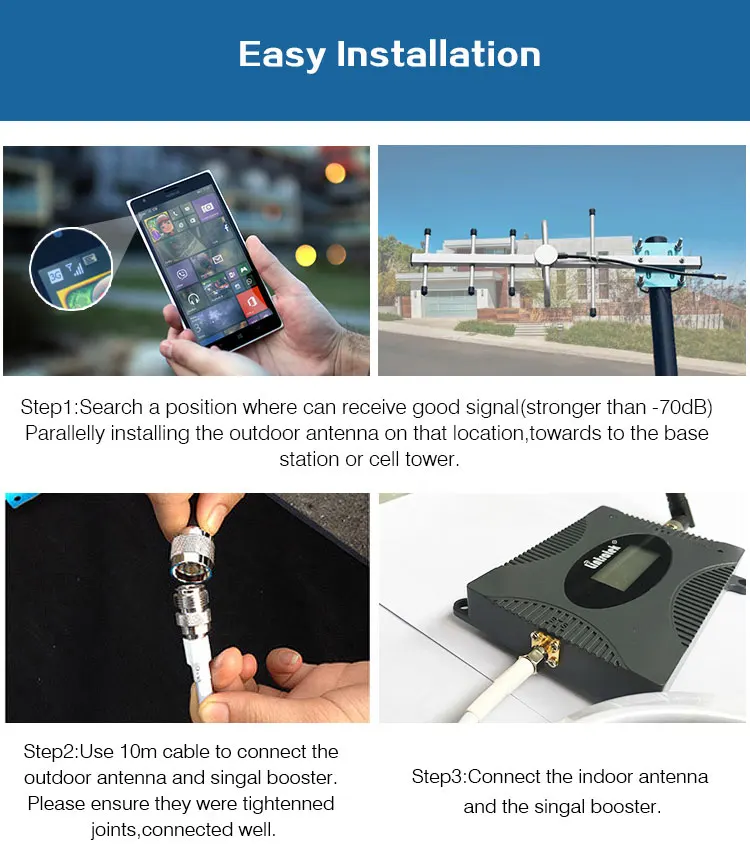

How to Install?
FAQ

Q1:Do you have CE or any other certification?

   A:Yes,we CE,ISO,ROHS and FCC certification,etc.



Q2:Can you give me a discount?

   A:We will offer discount when we hold activities.



Q3:How about gain and output power of your device?

   A:Different models, gain and output power are different,for more details, please contact us.



Q4:How long is warranty period?

   A:The warranty is 12 months. And we offer 7*24 technical support



Q5:What's your device lifespan?

   A:Normally our device can be used 10-15 years.



Q6:how many square meters can be covered?

   A:For different models, the covered square meters are different.



Q7:Can I use your device in suburbs or remote areas?

Yes, as long as you can find a good signal source, our signal booster can help you solve signal problems in remote areas.



Q8:How about gain and output power of your device?

Different models, gain and output power are different,for more details, please contact us.
