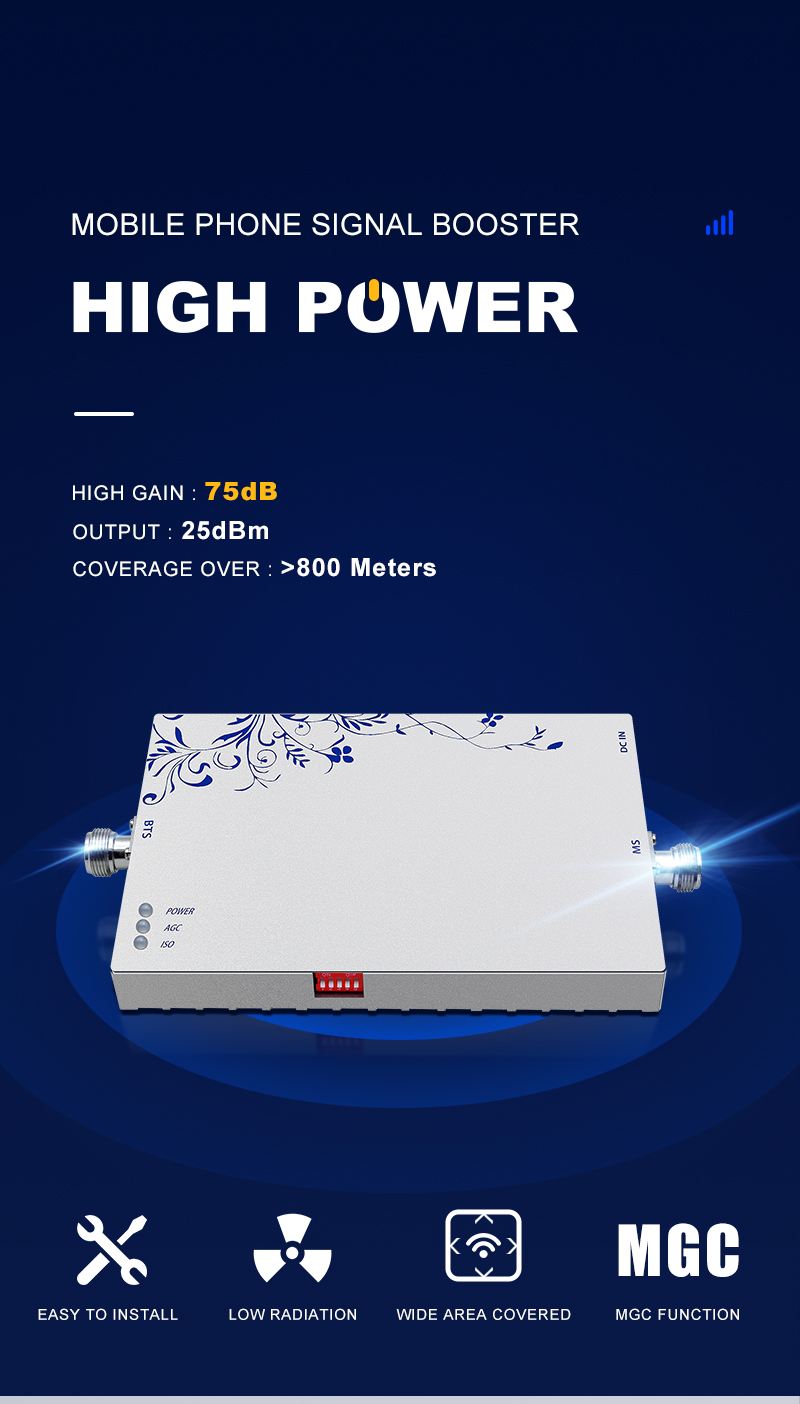

High Gain 75dB AWS 1700mhz Amplifier Mobile Signal Repeater

1~19/unit
$180.00
≥20/unit
$150.00
Quick Details
Product Code：
KW25F-AWS
OEM：
Available
Sample:
Available
Port:
GuangDong
Payment:
L/C,Western Union,T/T,PayPal
Place of Origin：
China
Shipping：
Support Express · Sea freight
Supply Ability：
5000 unit per month
Quick Details
  • Model Number
    KW25F-AWS
  • Type
    4G Signal Booster
  • Brand Name
    Lintratek
  • Gain
    75dB
  • Output Power
    25dBm
  • Frequency
    UpL880-915MHz DL925-960MHz
  • Coverage
    10-1000sqm
  • Connector
    N Female
  • Product Size
    180*140*47(mm)
  • Net Weight
    1.8KG
  • Certificate
    CE, ROHS, ISO
  • Quality Warranty
    12 Months
OK
Shipping fee
Shipping fee
Inquiry Basket
Contact Supplier
We Are Professional Manufacturer


How to Install?

KW25F (6).jpg
Product Parameter
 Specification
Parameter data
Uplink
Downlink
Frequency Range
1710-1755 MHz
2110-2155 MHz
Output Power
20 ±2dBm25
25±2dBm
Gain
70 ±2dB
75±2dB
Ripple in Band
≤4dB
Spurious

Emission
9KHz~1GHz
≤-36dBm
1GHz~12.75GHz
≤-30dBm
VSWR
≤2
MTBF
＞50000 hours
Power Supply
AC：90~265V, 50/ 60Hz；DC：9V 3A
Power Comsumption
＜ 20W
Impedance
50 ohm
Mechanical Specification
RF Connector
N-Female N
Cooling
Heatsink Convection cooling
Weight
< 1Kg
Operating Temperature
-10°C ~ 55°C
Products Description
KW25F (7).jpg
KW25F (1).jpg
KW25F (2).jpg
KW25F (11).jpg
KW25F (3).jpg
KW25F (12).jpg
KW25F (14).jpg
KW25F (13).jpg
KW25F (4).jpg

KW25F (5).jpg
KW25F (10).jpg
FAQ

Q1:Do you have CE or any other certification?

   A:Yes,we CE,ISO,ROHS and FCC certification,etc.



Q2:Can you give me a discount?

   A:We will offer discount when we hold activities.



Q3:How about gain and output power of your device?

   A:Different models, gain and output power are different,for more details, please contact us.



Q4:How long is warranty period?

   A:The warranty is 12 months. And we offer 7*24 technical support



Q5:What's your device lifespan?

   A:Normally our device can be used 10-15 years.



Q6:how many square meters can be covered?

   A:For different models, the covered square meters are different.



Q7:Can I use your device in suburbs or remote areas?

Yes, as long as you can find a good signal source, our signal booster can help you solve signal problems in remote areas.



Q8:How about gain and output power of your device?

Different models, gain and output power are different,for more details, please contact us.
